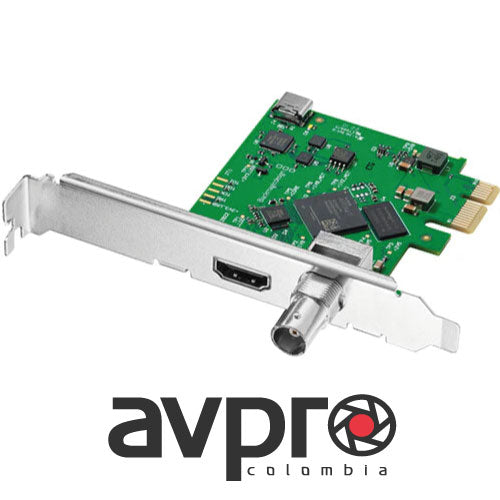

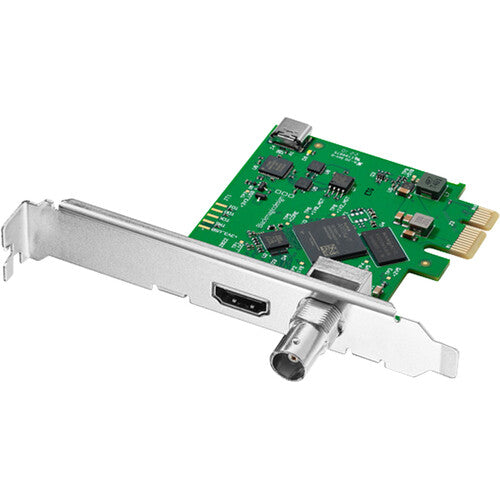

Blackmagic Design DeckLink Mini Recorder HD
Blackmagic Design DeckLink Mini Recorder HD
Blackmagic Design DeckLink Mini Recorder HD
Blackmagic Design DeckLink Mini Recorder HD
BlackMagic

Blackmagic Design DeckLink Mini Recorder HD

Disponible: En stock
$755.850 $910.000
Secure
Características clave:
  • Grabación con calidad de transmisión.
  • Tarjeta de ranura PCIe de 1 carril (para 1-16 carriles).
  • Entradas SDI y HDMI.
  • Admite hasta 2K DCI sobre SDI.
  • Soporte de resolución de hasta 1080p60 en HDMI.
  • Vídeo de 8, 10 y 12 bits, 4:2:2/4:4:4.
  • Soporte de espacio de color REC 601/709.
  • Compatible con Mac, Windows y Linux.

Grabe video HD a través de SDI o HDMI con Blackmagic Design DeckLink Mini Recorder HD . Esta tarjeta de reproducción con ranura PCIe de 1 línea con entradas SDI y HDMI es compatible con ranuras PCIe de 1, 4, 8 y 16 líneas, lo que le permite capturar hasta video DCI 2K a través de SDI y video HD a través de HDMI 2.0.

Blackmagic Design Mini Recorder HD Specs

Host Connection PCIe (Length Unspecified)
Input
Video Input Connectors 1x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0)
Input Video Format SDI (8/10/12-Bit 4:4:4 RGB)
1080p: 23.98/24/25/29.97/30 fps
720p: 50/59.94/60 fps
576i/625 lines at 50 fps 480i/525 lines at 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
576i/625 lines at 50 fps 480i/525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB, YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
576i/625 lines at 50 fps 480i/525 lines at 59.94 fps
HDMI (12-Bit 4:4:4 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
576i/625 lines 50 fps 480i/525 lines 59.94 fps
Simultaneous Multi-Input Support Not Specified by Manufacturer
Audio Input Connectors None
Embedded Audio Input SDI: 16-Channel HDMI: 8-Channel
Output
Embedded Audio Output None
Standards
Video Standard Compliance SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST/21081
HDR Compatibility Not Specified by Manufacturer
Hardware
OS Compatibility MacOS 11.1 MacOS 12.0 or Later Windows 10 Windows 11 Linux
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Power Consumption Device: 3 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90% (Non-Condensing)
Storage Humidity 0 to 90% (Non-Condensing)
General

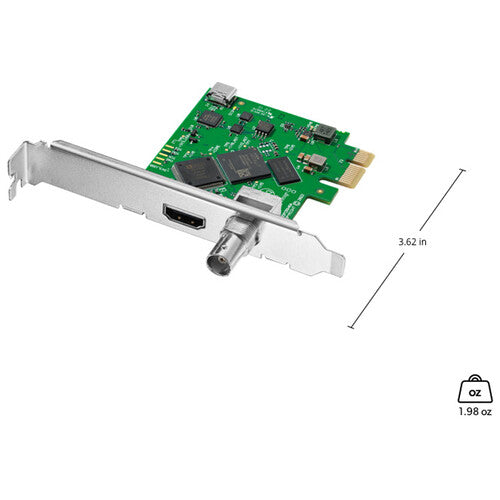

Dimensions 3.62 / 91.95 mm
Weight 1.98 oz/56 g
Packaging Info
Package Weight 0.29 lb
Box Dimensions (LxWxH) 5.6x5.3x1.2
Características clave:
  • Grabación con calidad de transmisión.
  • Tarjeta de ranura PCIe de 1 carril (para 1-16 carriles).
  • Entradas SDI y HDMI.
  • Admite hasta 2K DCI sobre SDI.
  • Soporte de resolución de hasta 1080p60 en HDMI.
  • Vídeo de 8, 10 y 12 bits, 4:2:2/4:4:4.
  • Soporte de espacio de color REC 601/709.
  • Compatible con Mac, Windows y Linux.

Grabe video HD a través de SDI o HDMI con Blackmagic Design DeckLink Mini Recorder HD . Esta tarjeta de reproducción con ranura PCIe de 1 línea con entradas SDI y HDMI es compatible con ranuras PCIe de 1, 4, 8 y 16 líneas, lo que le permite capturar hasta video DCI 2K a través de SDI y video HD a través de HDMI 2.0.

Blackmagic Design Mini Recorder HD Specs
Host Connection PCIe (Length Unspecified)
Input
Video Input Connectors 1x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0)
Input Video Format SDI (8/10/12-Bit 4:4:4 RGB)
1080p: 23.98/24/25/29.97/30 fps
720p: 50/59.94/60 fps
576i/625 lines at 50 fps 480i/525 lines at 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
576i/625 lines at 50 fps 480i/525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB, YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
576i/625 lines at 50 fps 480i/525 lines at 59.94 fps
HDMI (12-Bit 4:4:4 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
576i/625 lines 50 fps 480i/525 lines 59.94 fps
Simultaneous Multi-Input Support Not Specified by Manufacturer
Audio Input Connectors None
Embedded Audio Input SDI: 16-Channel HDMI: 8-Channel
Output
Embedded Audio Output None
Standards
Video Standard Compliance SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST/21081
HDR Compatibility Not Specified by Manufacturer
Hardware
OS Compatibility MacOS 11.1 MacOS 12.0 or Later Windows 10 Windows 11 Linux
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Power Consumption Device: 3 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90% (Non-Condensing)
Storage Humidity 0 to 90% (Non-Condensing)
General
Dimensions 3.62 / 91.95 mm
Weight 1.98 oz/56 g
Packaging Info
Package Weight 0.29 lb
Box Dimensions (LxWxH) 5.6x5.3x1.2
